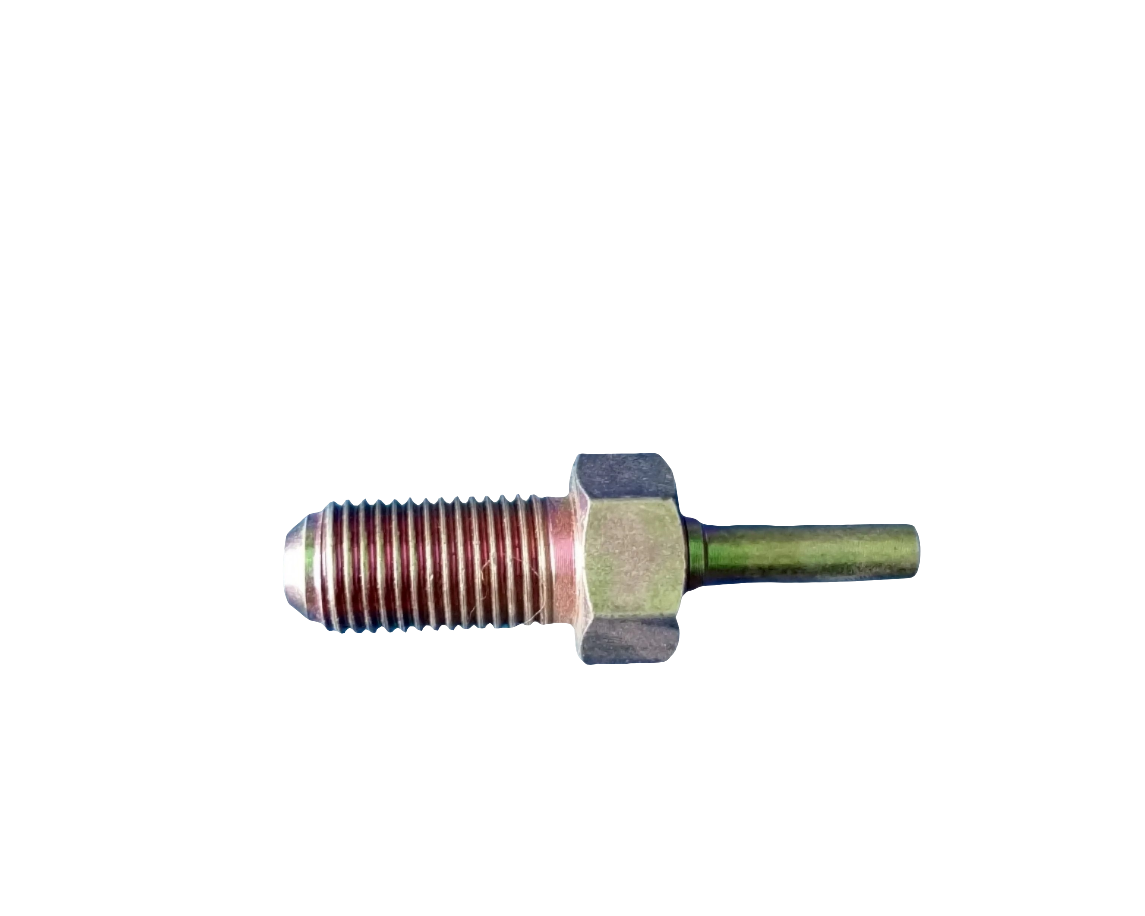

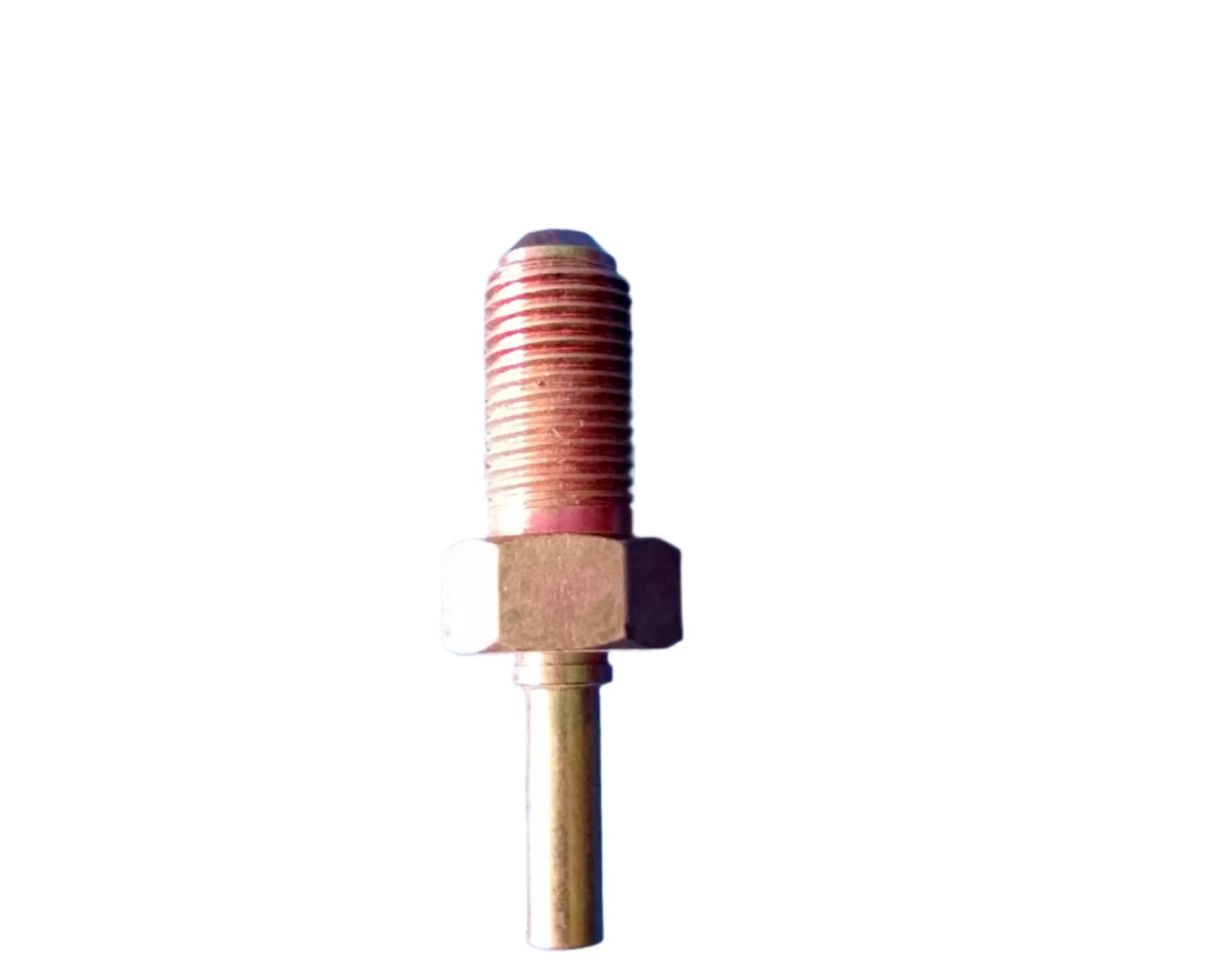

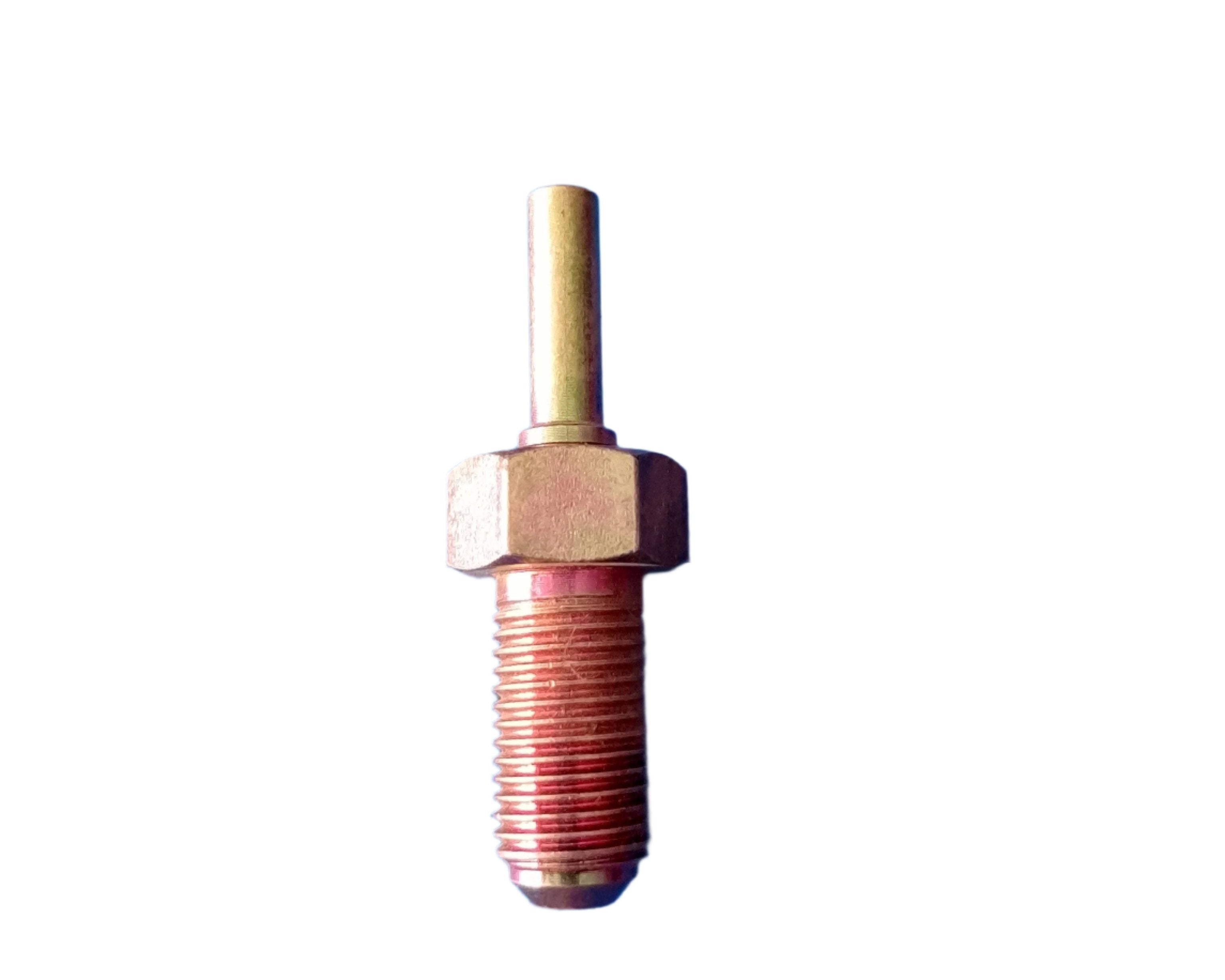

The WPR 10811L-14-04 Male Hydraulic Hose Fitting is crafted to deliver superior performance in high-pressure hydraulic systems. Engineered from high-strength AISI 316 alloy steel, this fitting offers remarkable durability and corrosion resistance, making it ideal for use in challenging environments, from construction sites to industrial machinery and agricultural equipment. Its 7/8" NPT threading ensures a tight, leak-proof fit, even under high-pressure conditions up to 5,000 PSI, providing peace of mind for operators and technicians.
Designed with both durability and ease of use in mind, the hexagonal head simplifies installation, while the anti-corrosive finish extends its service life, reducing the need for frequent replacements. Whether you’re working in a wet, dusty, or vibration-prone environment, this fitting is built to keep your hydraulic system running efficiently.
Key Benefits
-
Heavy-Duty Durability: Constructed from AISI 316 alloy steel, known for its strength and resistance to wear, corrosion, and harsh environmental conditions.
-
Leak-Proof and Secure: The 7/8" NPT threading is precision-engineered to provide a tight seal, reducing the risk of leaks and maintaining stable hydraulic pressure.
-
High Pressure and Temperature Tolerance: Rated for pressures up to 5,000 PSI (34.5 MPa) and temperatures ranging from -40°F to 250°F (-40°C to 121°C), this fitting withstands demanding hydraulic applications.
-
Corrosion Resistance: Anti-corrosive coating ensures longevity and reliable performance, even in high-moisture or chemical-rich environments.
-
Easy, Quick Installation: The hexagonal head design allows for easy tightening with a standard wrench, making installation straightforward and hassle-free.
Technical Specifications
Attribute |
Details |
Brand |
WPR |
Part Number |
10811L-14-04 |
Type |
Male Hydraulic Hose Fitting |
Material |
AISI 316 Alloy Steel |
Finish |
Anti-corrosive coating |
Pressure Rating |
Up to 5,000 PSI (34.5 MPa) |
Temperature Range |
-40°F to 250°F (-40°C to 121°C) |
Thread Type |
NPT (National Pipe Thread) |
Thread Size |
7/8" NPT |
Hose Bore (Inner Diameter) |
1/4" |
Dimensions |
|
- Hex Size (S2)
|
24 mm |
- Overall Length
|
40.5 mm |
- Internal Thread Size
|
14 mm |
- External Thread Size
|
19 mm |
Applications and Performance Insights
-
Industrial Equipment: Designed to meet the rigorous demands of hydraulic systems in heavy machinery like excavators, cranes, and forklifts, where stable connections and pressure are crucial for performance.
-
Automotive Hydraulics: Ideal for high-performance automotive hydraulic systems where pressure and vibration resistance are essential.
-
Construction & Mining Machinery: Perfect for loaders, bulldozers, and other construction equipment that operates in dusty, high-vibration environments.
-
Agricultural Machinery: Suitable for tractors, harvesters, and other outdoor equipment, where exposure to moisture and chemicals is frequent.
-
High-Moisture and Outdoor Settings: The anti-corrosive coating makes this fitting ideal for wet environments, offering protection against rust, extending the fitting’s lifespan, and reducing maintenance needs.
Installation & Maintenance Tips
-
Clean Threads Before Installation: Ensure that both the fitting and hose threads are clean to create a tight, secure seal.
-
Use the Correct Wrench: The hexagonal head design simplifies tightening; use a standard wrench for secure installation.
-
Inspect Periodically: Regularly check for tightness, wear, and corrosion. Re-tightening or replacing as needed helps maintain optimal performance.
-
Avoid Over-Tightening: Tighten only until secure to prevent damage to the thread or fitting.
Warranty & Return Policy
-
Warranty: Comes with a 1-Year Limited Warranty that covers any manufacturing defects.
-
Return Policy: 14-day return policy for items that are unused and in their original packaging. Verify compatibility with your hydraulic system before installation to ensure the best fit.
Why Choose the WPR 10811L-14-04 Male Hydraulic Hose Fitting?
The WPR 10811L-14-04 is more than just a hose fitting—it’s a high-performance solution designed for reliability in extreme conditions. With its durable construction, precision threading, and corrosion-resistant finish, this fitting is built to handle the stresses of industrial, automotive, construction, and agricultural applications. Whether you need a leak-proof connection for a hydraulic system or a fitting that can withstand high pressure and vibrations, this product delivers quality and peace of mind, minimizing downtime and maximizing efficiency in demanding environments.
